Serve fresh, warm Nigiri Sushi at the center of plates neatly and uniformly!

Nigiri Sushi Shaping & Plating Machine
SDU-JLA/JRA

Can plate one or three pieces of Nigiri Sushi on a plate upon request.
Quick processing from Nigiri Sushi forming to plating

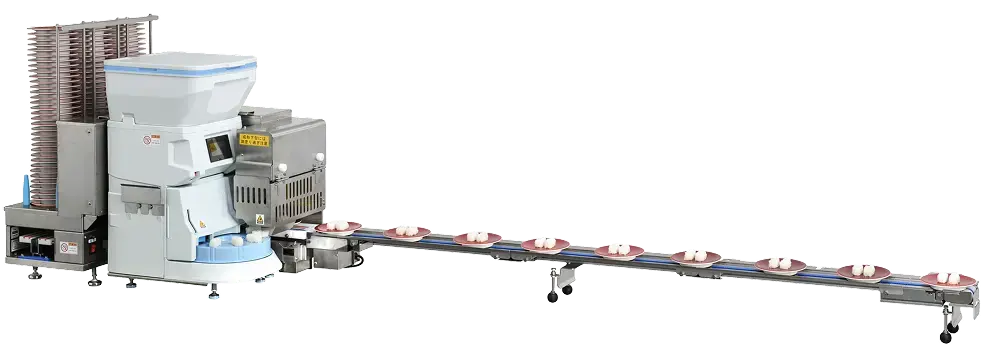

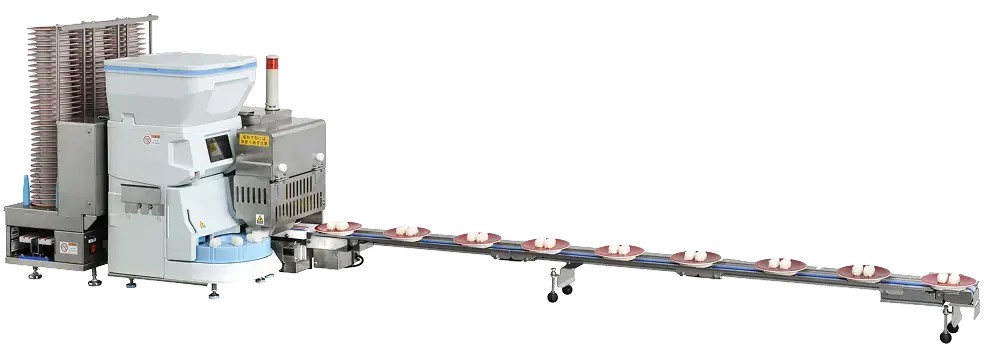

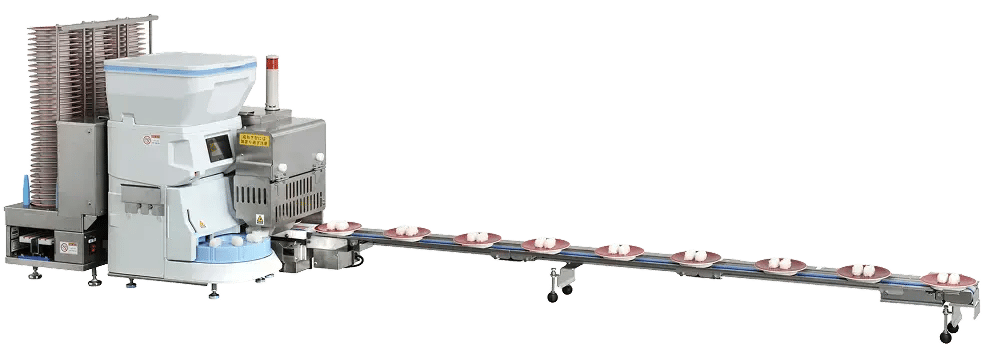

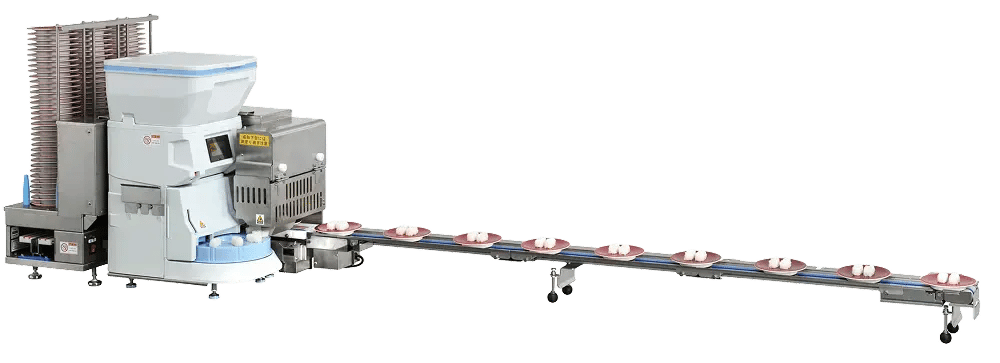

The photo shows the SDU-JRA. There is also the SDU-JLA which serves plates in the opposite direction.

Request for Catalog & Quote

SSN-JLA+SDU-JRA_sara

SSN-JLA+SDU-JRA_sara_tower

SSN-JLA+SDU-JRA_sara

SSN-JLA+SDU-JRA_sara_tower

Close

Model: SDU-JLA/JRA
Input: AC 100 V, 50/60 Hz
Power rating: 200W
Capacity: Up to 1,600 plates/hr (when plating two pieces)
Hopper Capacity: Approx. 10 kg (Approx. 5,400 ml)
Dimensions: 837 to 1,002 W (when the safety cover is turning) × 562 (D) × 812 (807 to 817) (H) mm
Other: There is also the SDU-JLA which serves plates in the opposite direction.
conveyor length (Selectable): 0.9 m, 1.5 m, 2.1 m
*Up to four conveyors can be connected.
Heater functions: Standard option
Plate Storage Capacity: 120 plates in total (40 plates × 3 rows)
Compatible Plate Sizes: Outer diameter of less than φ150 mm, bottom rim outer diameter of less than 100 mmHeight of approx.
21 mm, sushi rice serving height of approx. 13 mm
Sushi rice Placement: Nigiri Sushi pitch: Approx. 33 mm
Nigiri Sushi placement: Parallel or staggered
