For simple serving of a large amount of rice

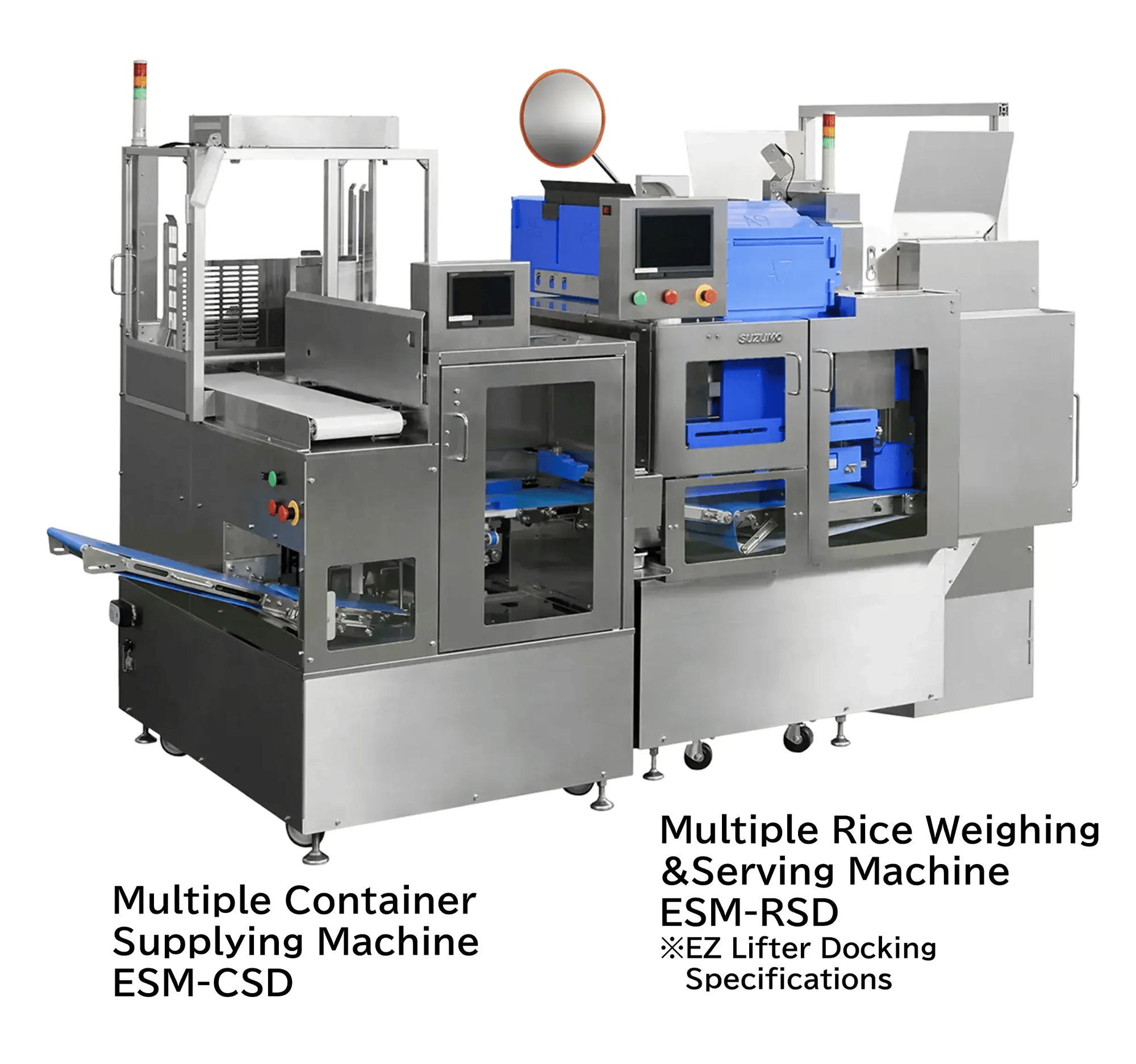

Multiple Rice Serving and Container Supplying Line with Weighing Machine
ESM_SERIES

  • The shape of the rice can be freely adjusted without changing any parts.
  • Shaping the rice into the form of the container eliminates the need for leveling.
  • Increased production capacity of 2,000 servings per hour.
  • Just load containers on the conveyor, and the machine automatically feeds them.
  • Designed to notify non-standard products.
Request for Catalog & Quote
ESM_SERIES製品画像注釈付英訳
ESM-RSD単体
ESM_SERIES製品画像注釈付英訳
ESM-RSD単体
Close

Product Features

51213424aa49ea9b3a6cbbd4f1603b5d0a752b4e

What you can make

ESM-SERIES03

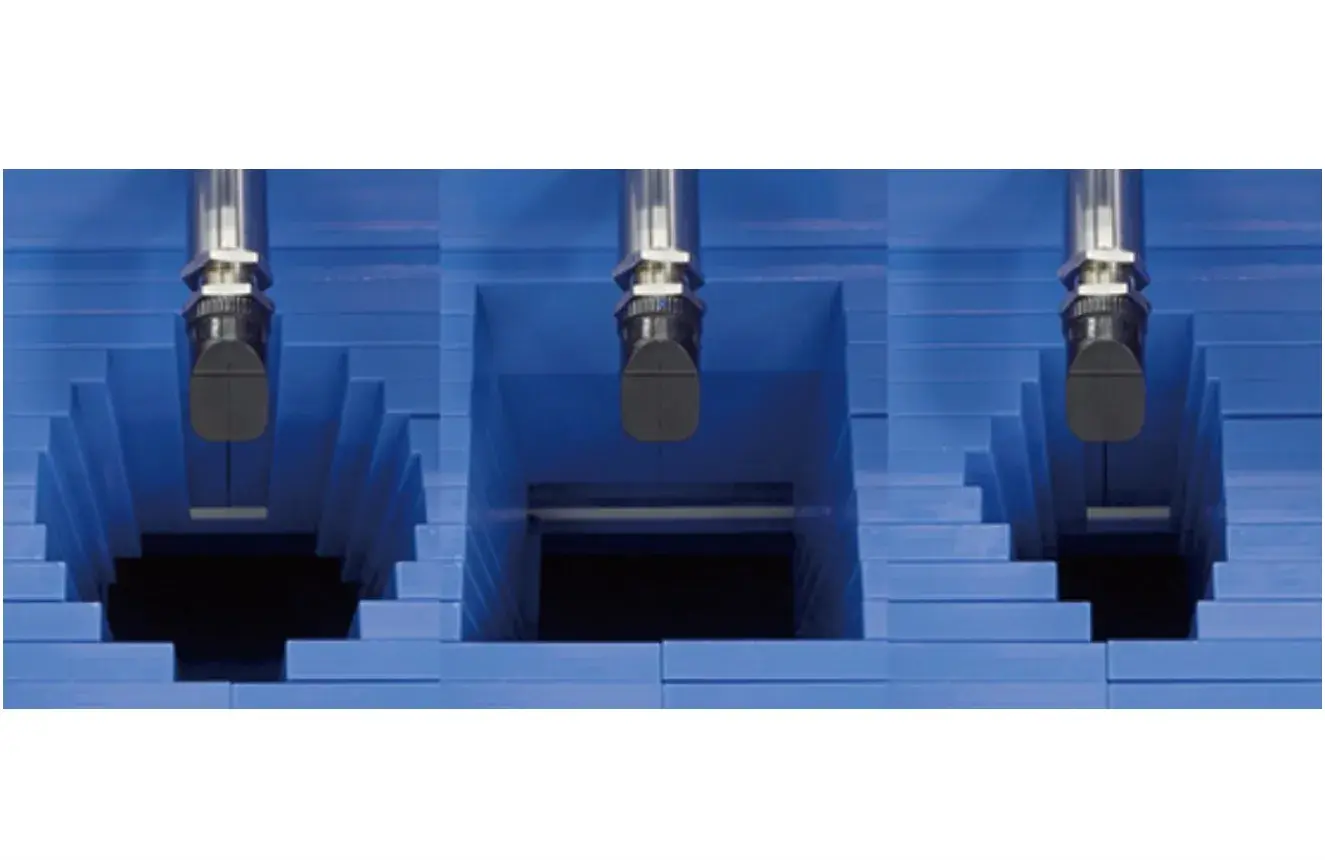

You can choose the shape of the rice you want to be served!

The touch panel allows you to adjust the rice shape with ease, eliminating the need for changing parts.

  •
e082834e90a6e4069b17efd55941c6736f5345f4

What you can make

ESM-SERIES05

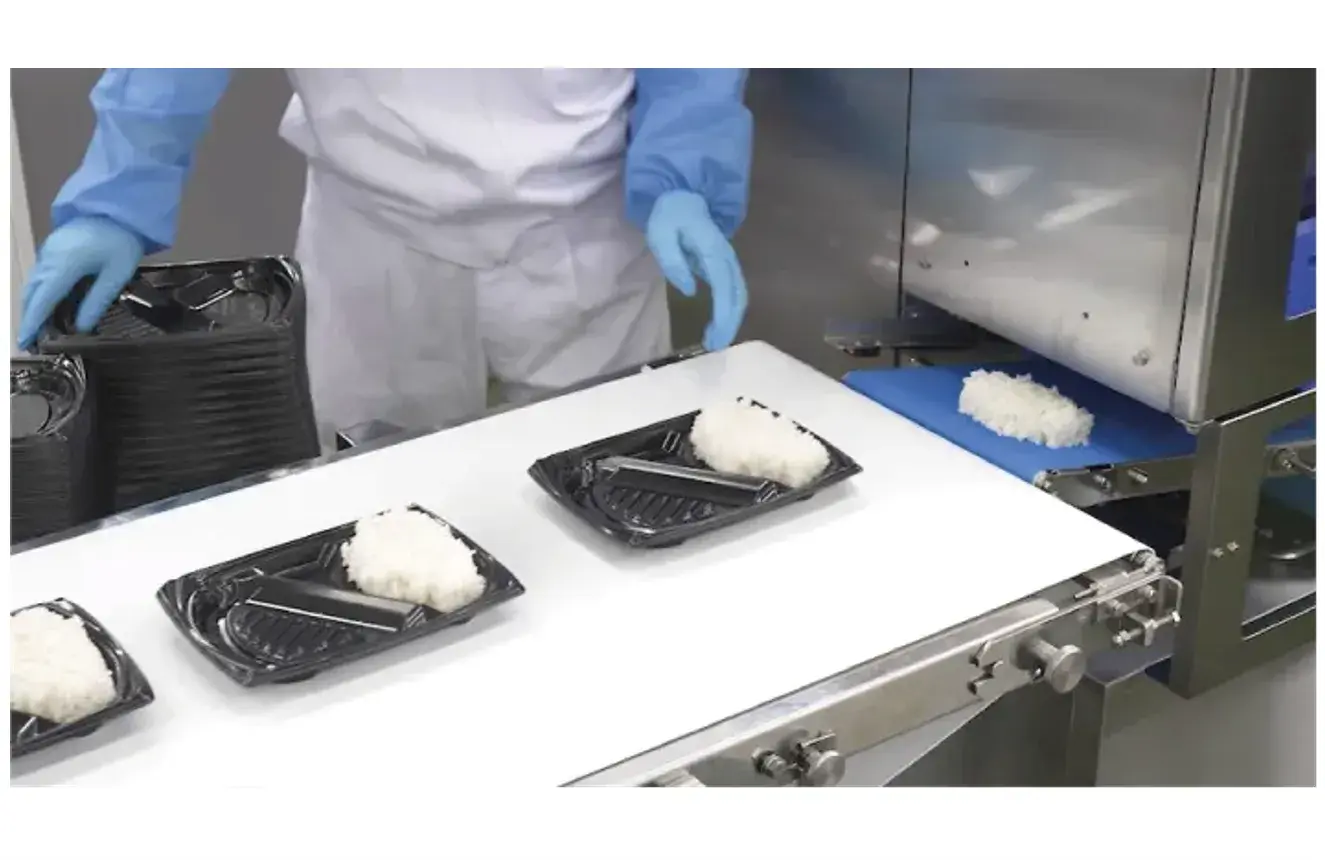

No more leveling of rice required!

The rice comes out in the shape of the container, eliminating the need for leveling. This results in improved quality and reduced labor.

  •
ESM-SERIES02

Designed to accept various containers

Designed to accommodate containers that cannot be loaded into the existing models! Uses the suction-conveyance method, which is less affected by the shape of the container bottom.

  •
ESM-SERIES04

Option: Docking to EZ Lifter enabled!

Eliminates the need to lift heavy trays, improving on-site operations!

  •

Product Videos

Specifications

Model
ESM-RSD (multiple rice server with weighing machine)
ESM-RSD + ESM-CSD (multiple rice serving and container supplying line with weighing machine)
Input
■ESM-RSD　Three-phase 200 V 50/60 Hz
■ESM-RSD + ESM-CSD　Three-phase 200 V 50/60 Hz (two sockets in total)
Power rating
1990W
■ESM-RSD　730W
■ESM-CSD　1260W
Capacity
Max. 2,000 servings per hour
Weight per piece
80～350g
Hopper capacity
Approx. 15 kg of cooked rice
Dimensions
■ESM-RSD alone
Approx. 1,915×1,340×1,860 (+ 50) mm (W×D×H)
Max. size: Approx. 1,915×1,890×2,180 (+ 50) mm (W×D×H)

■ESM-RSD + ESM-CSD
Approx. 3,105×1,435×1,960 (+ 50) mm (W×D×H)
Max. size: Approx. 3,105×1,940×2,180 (+ 50) mm (W×D×H)
Weight
■ESM-RSD　Approx. 720 kg
■ESM-CSD　Approx. 570 kg
Air source
■ESM-CSD　0.6MPa、180L/min
Container load number
■ESM-CSD　50 containers per load (approx. 50 on the conveyor×4 rows (up to approx. 250 in total))
Compatible sizes
■ESM-RSD
Size of rice served: Approx. 80×80 to 170×170 mm
* Some shapes may not be created due to limitations of the machine’s design.

■ESM-CSD
Compatible container size: 110×90 to 270×270 mm (W×D)
* Some containers may not be loaded due to limitations of the machine's design. Examples of incompatible containers include those with small stacking intervals or edges, or those that may become stuck in the dispenser.
Option
EZ Lifter
Size: Approx. 845×1,450×1,895 (+ 50) mm (W×D×H)
