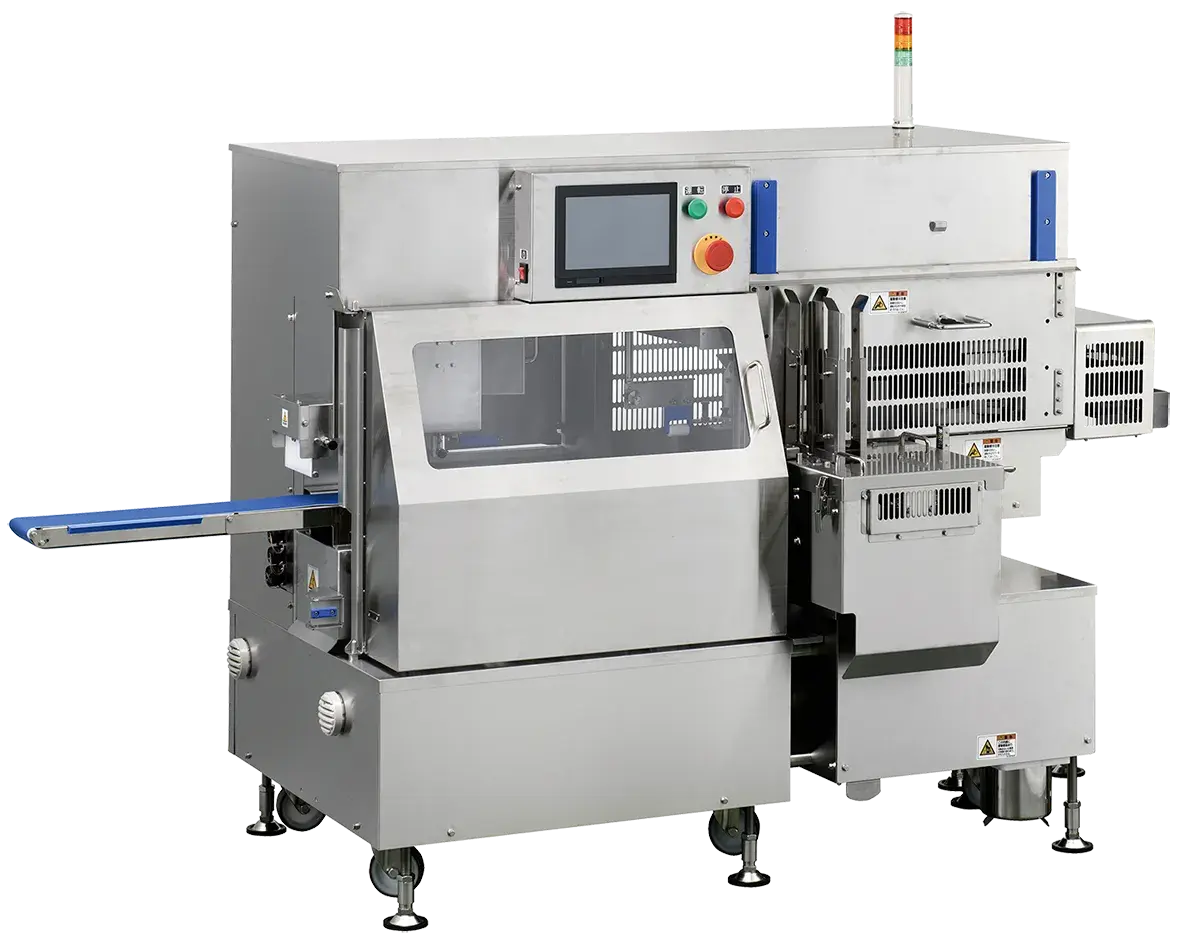

NOR-ULA

3-phase 200 V, 50/60 Hz
*Requires two power outlets

Approx. 4.05 kW

Up to 3,000 pcs/hr
*When the connected upstream machine makes 3,000 pieces every hour at continuous speed
*Maximum allowable capacity (Depends on the capacity of the upstream machine.)

Dimensions of the machine alone: 2,050 (W) × 1,050 (D) × 1,660 (H) mm
*Adjustable height: ±50 mm
Safety cover open/closed (maximum): 2,050 (W) × 1,530 (D) × 1,660 (H) mm
When an upstream conveyor is connected: 2,790 (W) × 1,050 (D) × 1,660 (H) mm

Approx. 540 kg

Uses two 0.6 MPa air sources at a rate of 73 L/min.

■ Upstream conveyor
Discharges pieces that are likely to become defective with the discharge function during production for higher consistency. (Product thickness and transfer pitch narrowness are monitored.)
■ Reverse conveyor
Reverses Onigiri to match it to the input orientation of the Nori placing machine.
■ Reorientation unit
Turns Onigiri to match it to the input orientation of the Nori placing machine.
■ Outlet inspection unit
Determines whether Nori is placed on the top surface of Onigiri using a camera sensor and discharges nonconforming ones to another conveyor.
■ Bypass conveyor
Transports products on which Nori is not placed downstream. Install this conveyor inside the Nori placing machine for use.
■ ZSU connection conveyor
Used when connecting the salting machine on the Onigiri line directly to the Nori placing machine without connecting the above accessories.

Places Nori at the customer-specified position on triangular or round Onigiri (details can be discussed, special orders allowed).

Hime-maki, Obi-maki, and Zen-maki can be supported with unit replacement.

Discharge conveyor (standard [pickup range: 135 mm] and long conveyor for POA [pickup range: 515 mm])

400 trays

Supports standard-cut Nori sheets with a width of 36 mm or more and a length of 210 mm or less. Nori must have the same size and must not warp. (These factors affect the reliability of the Nori supply system.)

Triangular shapes A to C (with a base of approx. 70 mm), triangular shape D (with a base of approx. 90 mm), and round shape A (φ74 mm)

Removable part rack(e.g. removable part rack for NOR-TRA)
